Livfast Rooftop Solar Power Generation 48V System with 5000 VA UPS+ 325W Panel(6)+ 165Ah(4) Battery with 50% Off

Livfast Solar Power kit ensures you the most efficient power solution formula for the people who want to get rid of the frequent power cuts, voltage issues and most obviously the increased power bills.We are offering you the best financial support with Zero down payment EMI plans. To know more details kindly contact our customer care at: +91 8075 622 843

207622.2 415244.4

Availability: Out of Stock

About Manufacturer;
Livfast is the leading power specialist in India with a widespread portfolio of Power back up solutions such as Automotive Batteries, Inverters, Inverter Batteries, Solar Applications. We listen and understand the needs of the consumers and answer these needs in form of our products. We, at Livfast strive to be constantly innovating to make lives across the country easier for our consumers.

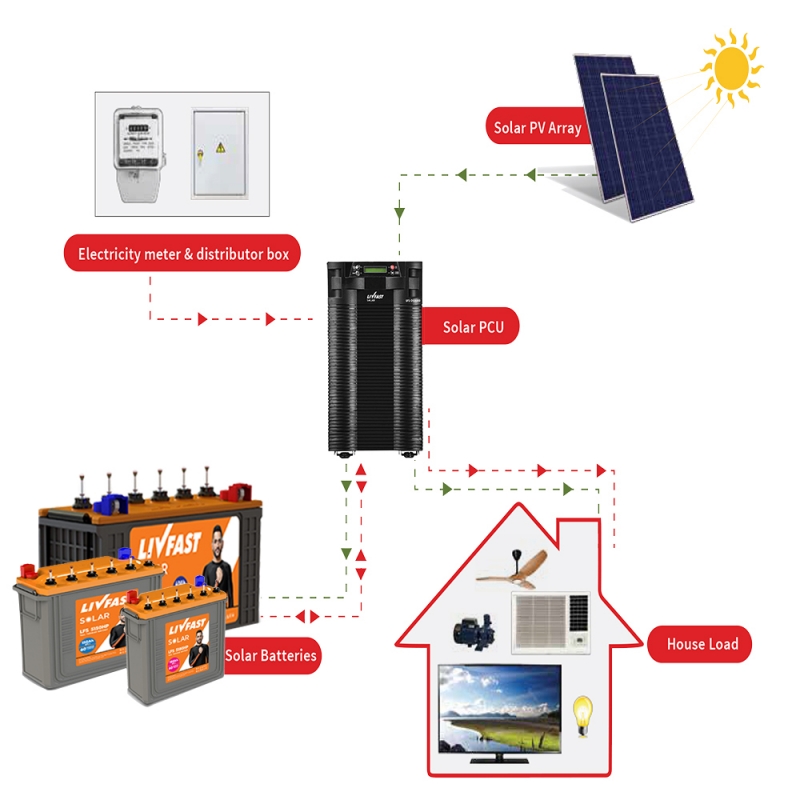

Solar Components;
SOLAR PV PANEL-325Wx6 nos
SOLAR PCU 48V- 5000 VAx1nos
SOLAR BATTERY-165AHx4nos

Advantages;
Reduced power bill.
Return on surplus power.
Reduced carbon emission.
Eco-friendly power source.
Efficient power supply.
Low maintenance cost.

Note: For the above solution, extra BOS will be required for final installation
& commissioning
BOS: Cable, connector, ACDB, structure etc.

Specifications

PCU 5000 VA;
System Rating – 5 KVA
Nominal Battery Voltage (Vdc) – 48V
Ouput Waveform – Pure Sine Wave
Switching Element – MOSFET
Dimensions (LxWxH) – 370 x 510 x 550 mm
Net Weight (Kg) – 43.79
Technology – PWM
SCC Rating – 70 A

Solar Pv Panel 325W;
Power(PM) in Watts(Nominal): 325
No. of Cells: 72
Related Module Voltage: 24
Voltage at Maximum Power(Vmp) in Watts: 37.8
Current at Maximum Power(Imp) in Amps: 8.6
Open Circuit Voltage(Voc) in Volts: 46.2
Short Circuit Current(Isc) in Amps:9.13
Maximum System Voltage(VDC): 1000
Module Efficiency (%): >16%
Roof Top Area Required:100 to 110 sq. ft. per kilo watt
Avg. Solar Generation: 3.5 to 4 unit per day

Solar Battery 165 Ah;
Nominal Voltage (V) – 12
Capacity @ C10 (Ah) – 165
Battery Weight with Acid (Kg) – 59.5
Dimension (LxWxH) – 505x190x410 mm
Free Replacement (Months) – 0-60
Note – Battery capacity are C10 upto 1.80 v.p.c at 27°C

Customer Finance;
We offer the best affordable EMI plans with zero down payment for our customers. Our customers are assisted with the qualified financial experts in finding the competent financial option and eligibility according to the information provided. You can easily activate your respective plans via a debit/credit card with the help of our cash collecting team and a charge slip along with all necessary credentials handover to the customers after the payment.

Other Info;
Delivery Time: Within 7 days
Installation: On request
Product Warranty: 5 Years on site, Warranty Card delivered with the products
Manufactured in: India
** Refer warranty documents for terms and conditions.
