Specifications;

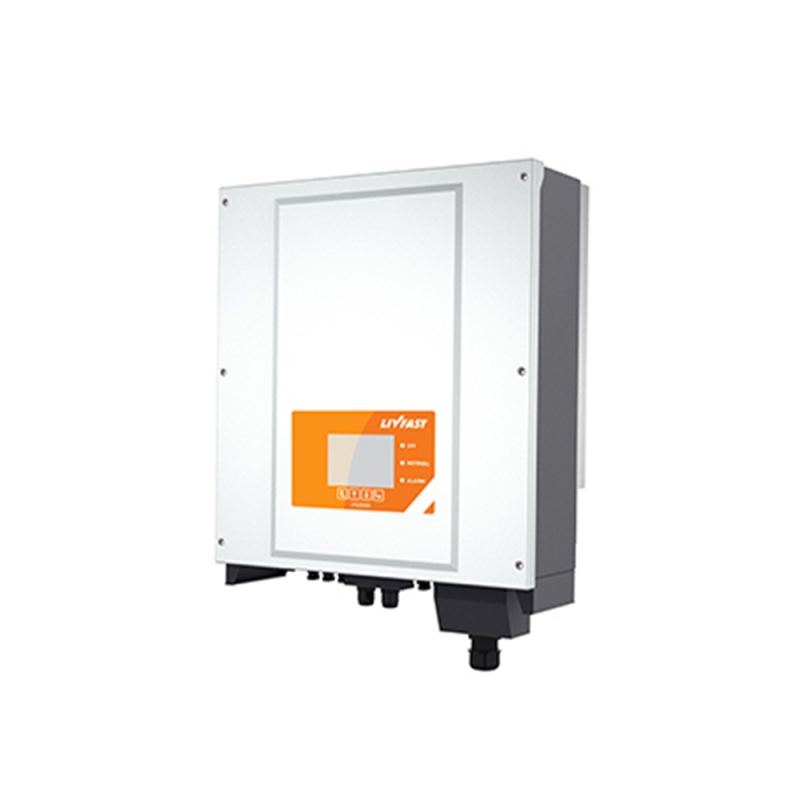

Grid Interactive Inverter 30KW 3PH;
Capacity – 30 KW – 3 Ph
Technology – MPPT
Maximum Recommended PV Power – 39900 W
Startup Voltage – 250 V
Number of MPPTs – 2
MPPT Voltage Range – 160-960 V
Max. Output Current – 48 A
Total Harmonic Distortion – < 3 %
MPPT Adaptation Efficiency – > 99.9%
Dimensions (mm) – 666(W) x 512(H) x 254(D)
Weight (Kg) – 37

Solar Pv Panel 325W;
Power(PM) in Watts(Nominal): 325
No. of Cells: 72
Related Module Voltage: 24
Voltage at Maximum Power(Vmp) in Watts: 37.8
Current at Maximum Power(Imp) in Amps: 8.6
Open Circuit Voltage(Voc) in Volts: 46.2
Short Circuit Current(Isc) in Amps:9.13
Maximum System Voltage(VDC): 1000
Module Efficiency (%): >16%
Roof Top Area Required:100 to 110 sq. ft. per kilo watt
Avg. Solar Generation: 3.5 to 4 unit per day

Solar Pv Panel 375W;
Power(PM) in Watts(Nominal): 375
No. of Cells: 72
Related Module Voltage:24
Voltage at Maximum Power(Vmp) in Watts: 40.30
Current at Maximum Power(Imp) in Amps: 9.26
Open Circuit Voltage(Voc) in Volts: 49.10
Short Circuit Current(Isc) in Amps: 9.70
Maximum System Voltage(VDC): 1500
Roof Top Area Required:100 to 110 sq. ft. per kilo watt
Avg. Solar Generation: 3.5 to 4 unit per day

Customer Finance;
We offer the best affordable EMI plans with zero down payment for our customers. Our customers are assisted with the qualified financial experts in finding the competent financial option and eligibility according to the information provided. You can easily activate your respective plans via a debit/credit card with the help of our cash collecting team  and a charge slip along with all necessary credentials handover to the customers after the payment.

Other Info;
Delivery Time: Within 7 days
Installation: On request
Product Warranty: 10 Years on site, Warranty Card delivered with the products
Manufactured in: India
** Refer warranty documents for terms and conditions.
Module Efficiency (%): >19.40%.5mm
Weight (Kg) – 6.3
